Double pendulum

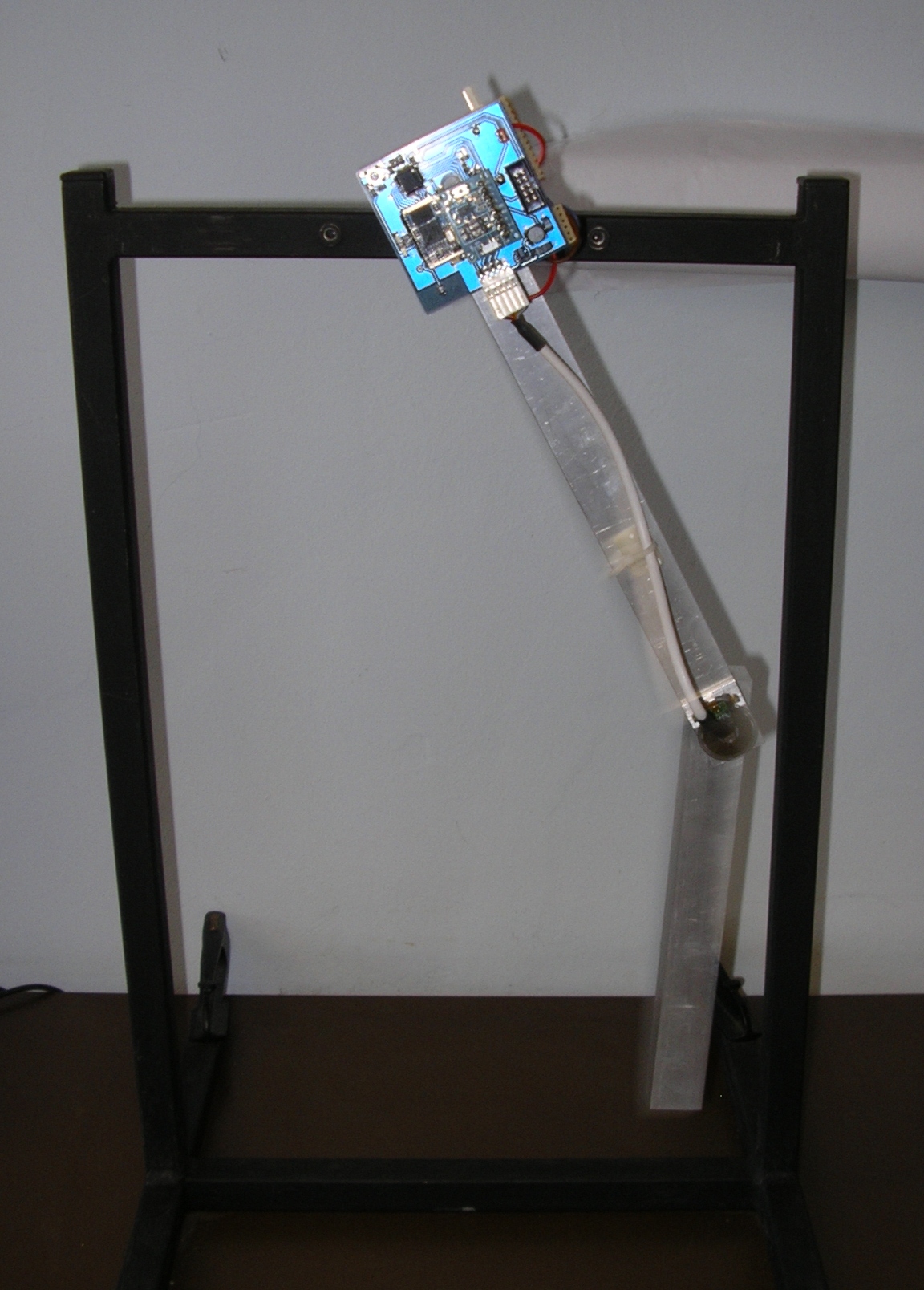

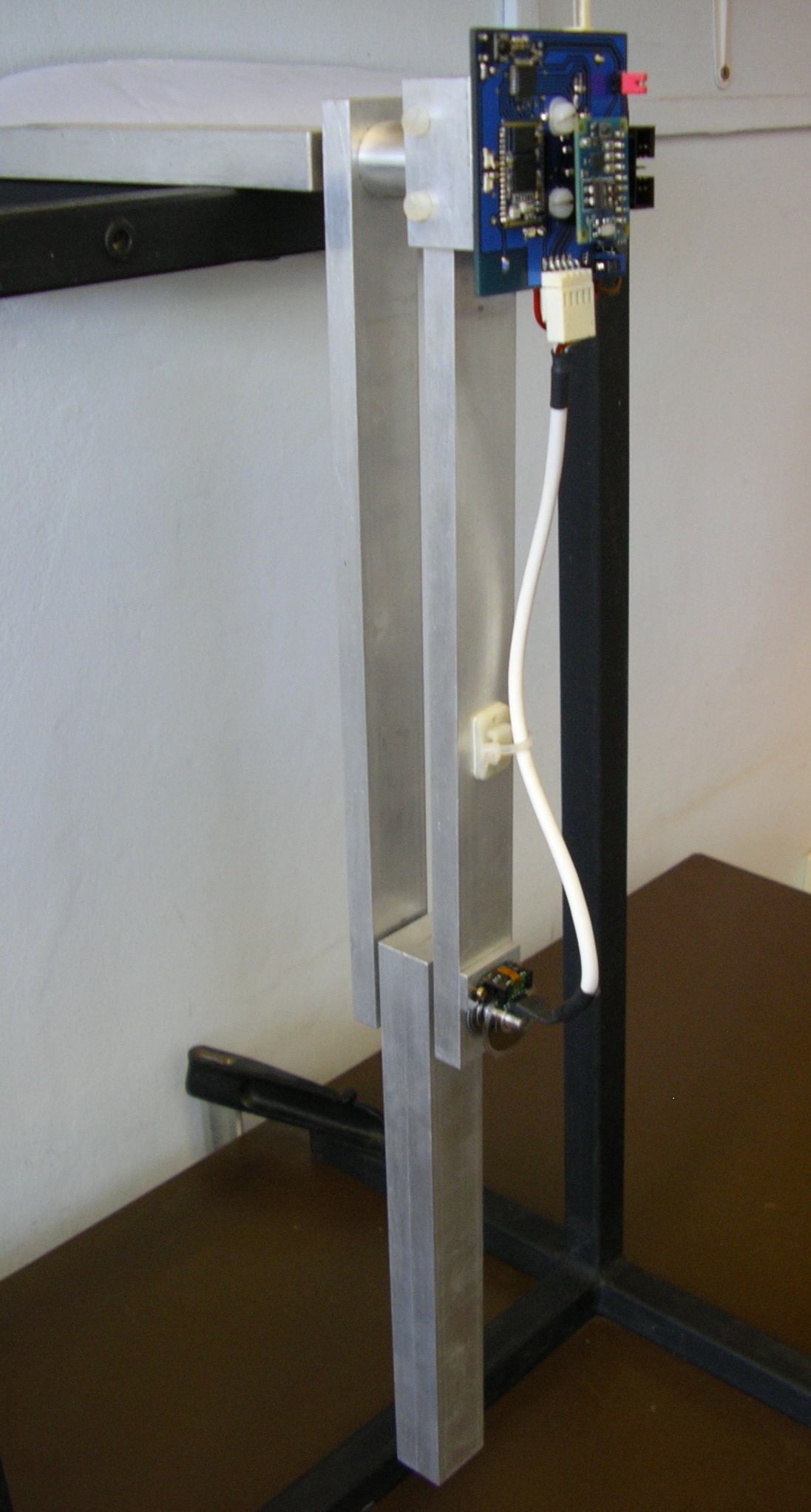

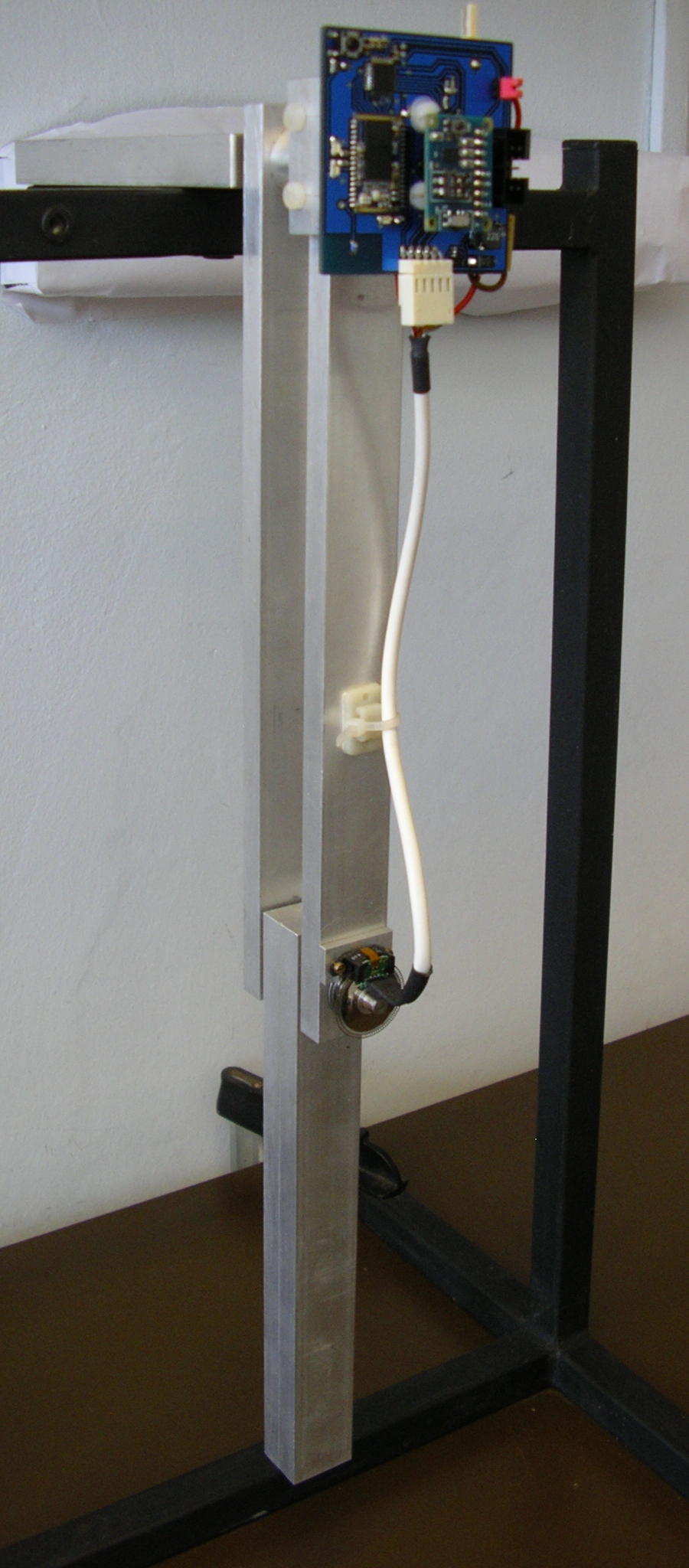

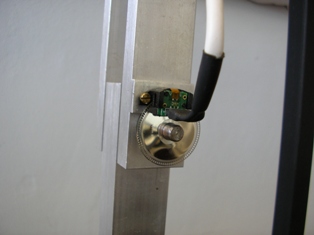

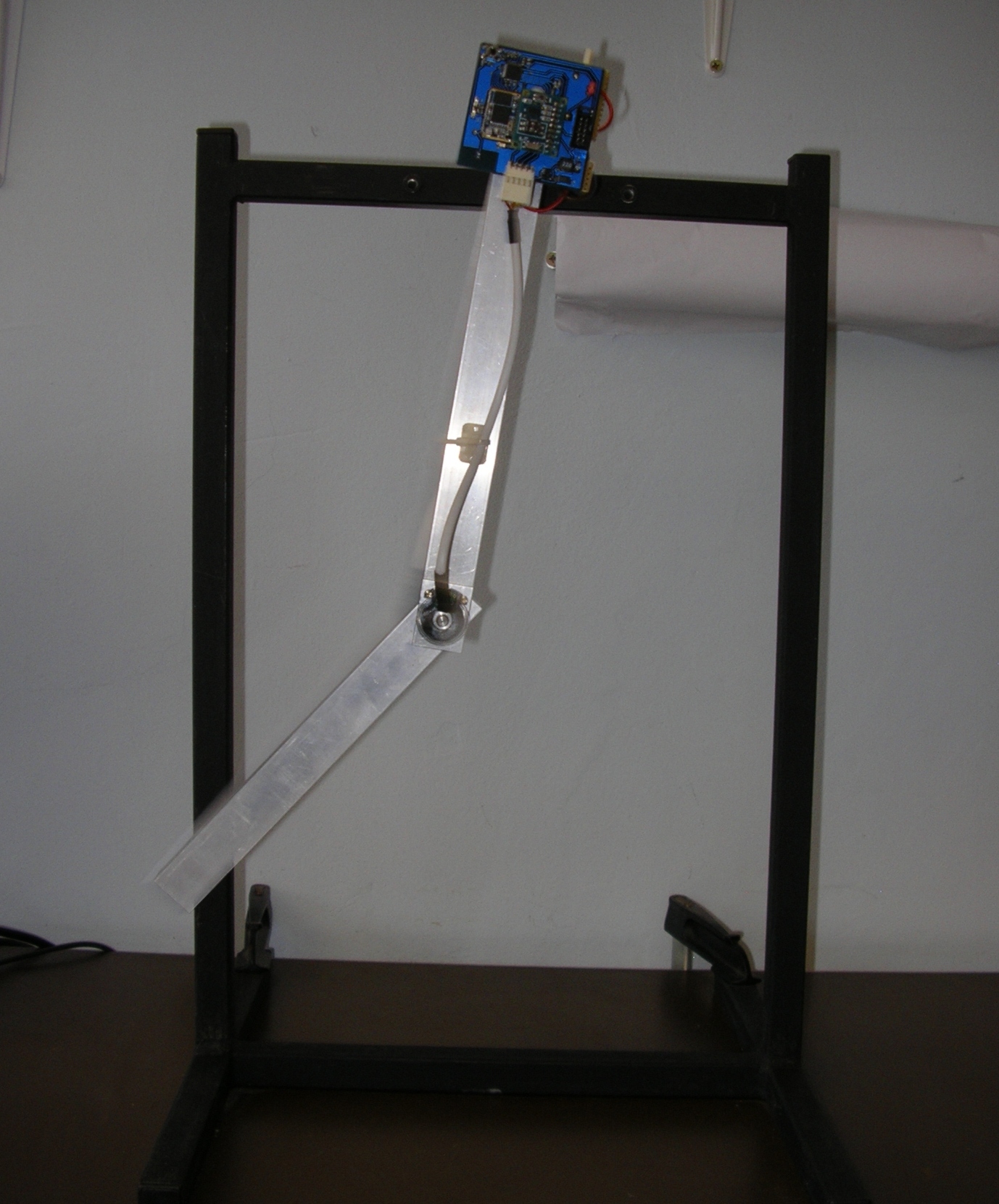

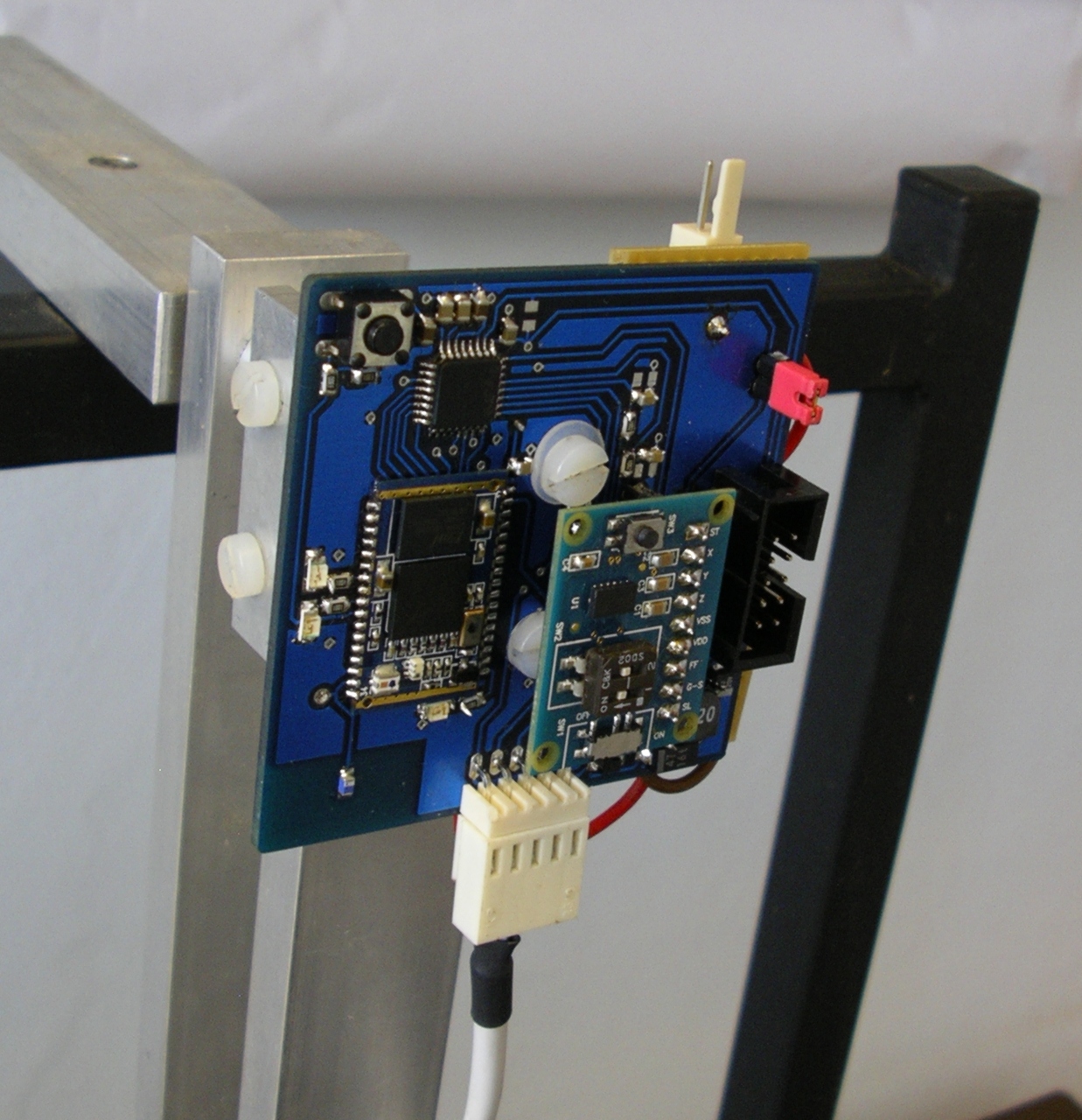

Parameters and pictures

0,273 m upper pendulum length (l1)
0,215 m lower pendulum length (l2)
0,025 m width of the two pendula (w1, w2)
0,01 m thickness of one half of the upper pendulum (z1)
0,02 m thickness of the lower pendulum (z2)
0,369 kg upper pendulum weight (m1)
0,29 kg lower pendulum weight (m2)
