High resolution stopwatch for cents
See all education development projects or see all scientific/industrial development projects
Publication
- Z. Gingl, K. Kopasz, High resolution stopwatch for cents, accepted for publication in Physics Education
e-print:arxiv
Open-source software
No support is provided.
Visual C++ source code
Windows executable
Connecting the sensors to the microphone input
The microphone input of the sound card should be used. Heat shrink tubes are used to isolate the wires from directly touching them.
Farnell ordering pages: 3,5mm jack plug, TEPT4400, OFT-5301 (lowest cost infrared phototransistor)

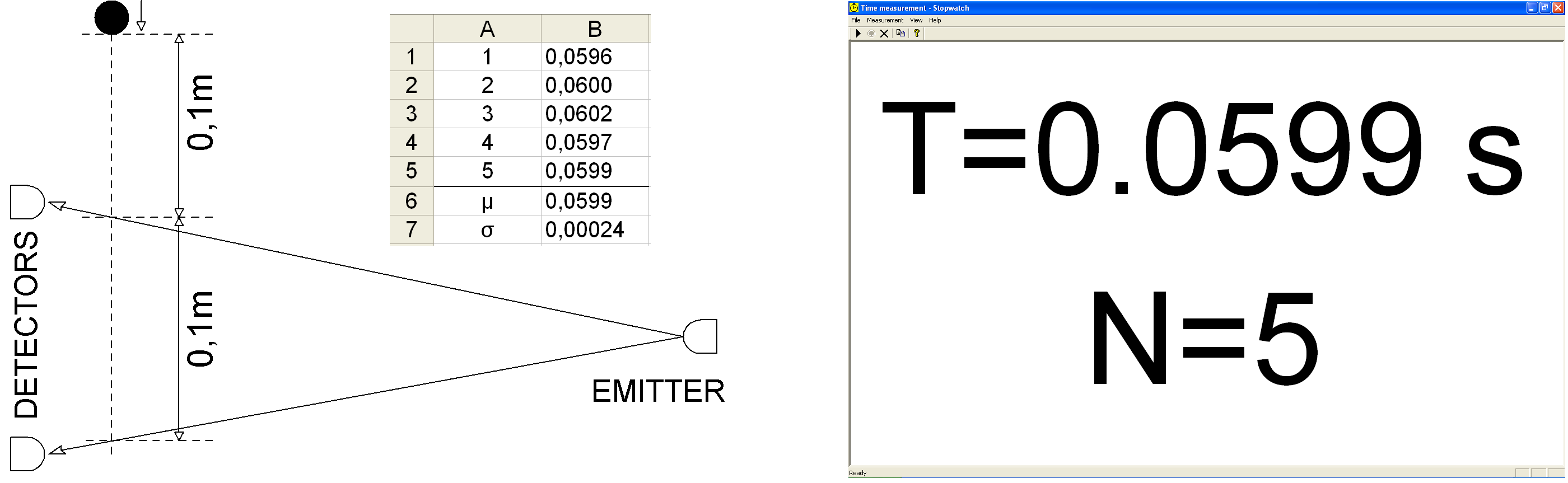

Example experiment
Related information
- Ganci A and Ganci S 2009 Stopwatch provides low-cost training Phys. Educ. 44 119-20
- Gingl Z 2011 Sub-$10 photogate variants Phys Teach. submitted, Arxiv preprint arXiv:1101.0608
- Design Fundamentals for Phototransistor Circuits
- Photocells, a.k.a CdS cells, photoresistors, LDR (light dependent resistor)
- How to connect photoresistors
- Jim's Homemade Spud Gun / BBMG / Airsoft / Paintball Chrono & ROF Meter Page
